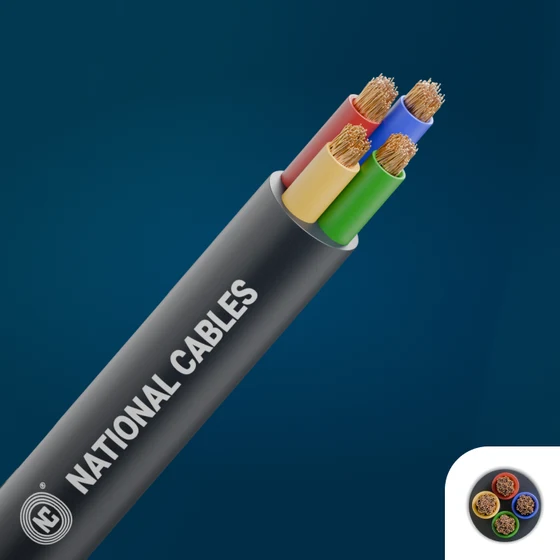

Multicore Flexible Cable (FR PVC Insulated & Sheathed)
FR PVC insulated and PVC sheathed multicore flexible cable for power distribution, machinery wiring, and industrial control applications. Multiple colour-coded conductors in a single sheathed assembly — reducing cable tray fill, gland count, and termination complexity in panels and equipment.
Industrial Control & Multicore Flexible Cables — Type D Heat Resistant (85°C) Approved
Bunched control cable and high-flex OEM harness combinations of cross-section and core count. Standard stock items available for immediate dispatch. Items marked * are non-stock — contact our technical team for lead time confirmation before specifying in project tenders or BOQs.
| ISI Marked · BIS Licence — up to 4-Core 10.0mm² | Manufactured Confirming to IS 694:2010 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Conductor (mm²) | Twin Twisted | 2 Core | 3 Core | 4 Core | 5 Core * | 6 Core * | 7 Core * | 10 Core * | 12 Core * | 14 Core * | 19 Core * | 24 Core * |
| Standard Range — 0.5mm² to 2.5mm² (Stock) · Larger cores available on order | ||||||||||||
| 0.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 0.75 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1.0 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 2.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Larger Conductors — 3 & 4 Core (Non-stock, confirm lead time) | ||||||||||||
| 4.0 | — | ✓ | ✓ | ✓ | — | — | — | — | — | — | — | — |
| 6.0 | — | — | ✓ | ✓ | — | — | — | — | — | — | — | — |
| 10.0 | — | — | ✓ | ✓ | — | — | — | — | — | — | — | — |
| 16.0 * | — | — | ✓ | ✓ | — | — | — | — | — | — | — | — |
| 25.0 * | — | — | ✓ | ✓ | — | — | — | — | — | — | — | — |
| 35.0 * | — | — | ✓ | ✓ | — | — | — | — | — | — | — | — |
| 50.0 * | — | — | ✓ | ✓ | — | — | — | — | — | — | — | — |
| 70.0 * | — | — | ✓ | ✓ | — | — | — | — | — | — | — | — |
| * Non-stock items — confirm availability and delivery with technical team before specifying in BOQ or tender. ✓ = Available. — = Not available in this configuration. Smaller control sizes are typically supplied on tart packed coils; large multicore builds (e.g. 24-core 2.5mm²) are supplied on wooden drums. ISI (IS 694:2010) marking applies only within the BIS licence scope (first five columns, up to 4-Core 10.0mm²); 5–24 core columns and tinned-copper OEM options are manufactured confirming to IS 694 — not claimed under the standard ISI mark for those items. | ||||||||||||
Correct current ratings for your installation temperature.
All current ratings are tabulated at 30°C ambient. Apply de-rating factors for installations where ambient temperature exceeds this reference.
| Ambient Temp | Multiply by |
|---|---|
| 25°C | 1.03 |
| 30°C | 1.0 |
| 35°C | 0.94 |
| 40°C | 0.87 |
| 45°C | 0.79 |
| 50°C | 0.71 |
| 55°C | 0.61 |
| 60°C | 0.5 |
| Reference: 30°C ambient. Source: IS 3961 (Part 2):2017 / BS 7671:2018+A2:2022 | |
Example: 10mm² wire clipped direct = 51A at 30°C. At 45°C ambient: 51 × 0.79 = 40A.
This is particularly relevant for installations in industrial buildings, rooftop runs, and locations in North and Central India where summer ambient temperatures regularly exceed 40°C.
Approximate OD and weight by configuration.
OD and weight for standard multicore configurations — 0.5mm² to 2.5mm². Values are approximate ±5%. Larger conductors available on order.
| Conductor (mm²) | No. of Cores | Approx. OD (mm) | Approx. Weight (kg/km) | Max R Class 5 (Ω/km) |
|---|---|---|---|---|
| 0.5mm² — 39.0 Ω/km conductor resistance at 20°C | ||||
| 0.5 | 2 | 7.0 | 40 | 39.0 |
| 0.5 | 3 | 7.5 | 52 | 39.0 |
| 0.5 | 4 | 8.2 | 65 | 39.0 |
| 0.5 | 5 | 9.0 | 82 | 39.0 |
| 0.5 | 7 | 10.5 | 110 | 39.0 |
| 0.5 | 10 | 12.5 | 145 | 39.0 |
| 0.75mm² — 26.0 Ω/km conductor resistance at 20°C | ||||
| 0.75 | 2 | 7.5 | 50 | 26.0 |
| 0.75 | 3 | 8.2 | 68 | 26.0 |
| 0.75 | 4 | 9.2 | 88 | 26.0 |
| 0.75 | 5 | 10.2 | 112 | 26.0 |
| 0.75 | 7 | 12.0 | 150 | 26.0 |
| 0.75 | 10 | 14.5 | 205 | 26.0 |
| 1.0mm² — 19.5 Ω/km conductor resistance at 20°C | ||||
| 1.0 | 2 | 8.3 | 64 | 19.5 |
| 1.0 | 3 | 9.2 | 88 | 19.5 |
| 1.0 | 4 | 10.2 | 115 | 19.5 |
| 1.0 | 5 | 11.5 | 148 | 19.5 |
| 1.0 | 7 | 13.2 | 198 | 19.5 |
| 1.0 | 10 | 15.8 | 268 | 19.5 |
| 1.5mm² — 13.3 Ω/km conductor resistance at 20°C | ||||
| 1.5 | 2 | 9.0 | 82 | 13.3 |
| 1.5 | 3 | 10.0 | 112 | 13.3 |
| 1.5 | 4 | 11.3 | 148 | 13.3 |
| 1.5 | 5 | 12.8 | 192 | 13.3 |
| 1.5 | 7 | 14.5 | 260 | 13.3 |
| 1.5 | 10 | 17.5 | 358 | 13.3 |
| 2.5mm² — 7.98 Ω/km conductor resistance at 20°C | ||||
| 2.5 | 2 | 10.7 | 130 | 7.98 |
| 2.5 | 3 | 12.0 | 178 | 7.98 |
| 2.5 | 4 | 13.5 | 238 | 7.98 |
| 2.5 | 5 | 15.0 | 305 | 7.98 |
| 2.5 | 7 | 17.2 | 408 | 7.98 |
| 2.5 | 10 | 20.8 | 558 | 7.98 |
| OD and weight values are approximate ±5% — subject to manufacturing tolerance. Source: IS 694:2010 reference tables. Smaller control sizes: tart packed coils; large multicore (e.g. 24-core 2.5mm²): wooden drums. Larger conductors (4–35mm²) on order — contact for OD and weight data. | ||||
Fully vertically integrated manufacturing.
Vibration-resistant multicore construction: two layers beyond single core wire — individual core insulation and an overall sheath that bundles conductors for bunched control cable and high-flex OEM harness routing. Every stage from copper drawing to final extrusion is performed in-house.
Bending Endurance: Our Class 5 fine-stranding is engineered for high flexibility cycles, making these cables ideal for moving machinery and robotic arms where standard cables suffer fatigue failure.
What makes multicore flexible the right specification for panels and industrial wiring.
Multiple conductors in one sheath is an engineering decision, not just a convenience. Each property below determines whether the cable performs reliably in the installation it was specified for.
Where this wire is specified.
Multicore flexible cable is specified wherever multiple circuits must travel the same route — reducing installation complexity, cable tray congestion, and termination count. The combination of Class 5 flexibility and colour-coded cores makes it the standard for industrial panels, machine wiring, and building services.
Standards this product is manufactured to.
National Cables Multicore Flexible Cable is manufactured to IS 694:2010 — the same standard as the single core range. Same BIS licence, same compliance framework, same testing protocol applied to every production lot. Full documentation available for institutional procurement, government tenders, and export requirements.
Multicore flexible cable — technical questions answered.
Common questions from panel builders, OEM machine builders, industrial contractors, and EPC procurement teams specifying multicore flexible cable to IS 694:2010.
Can multicore flexible cable be used for fixed tray wiring?
Yes. Multicore flexible cable with Class 5 conductors to IS 694:2010 is suitable for fixed installation on cable trays, in conduits, and within trunking systems, provided appropriate cable management (cleating, spacing, bundling) is used. Apply derating factors for grouped cables per installation standards.
The 1100V PVC insulation is suitable for most industrial fixed wiring applications. For environments requiring halogen-free performance (enclosed public spaces, data centres), specify multicore cable manufactured to IS 17048:2018 HFFR instead.
Fixed-tray use does not replace dedicated drag-chain or festoon cables for dynamic applications.
What is the difference between Class 5 and Class 6 conductors?
Both are flexible copper conductor classes per IEC 60228 / IS 8130, differing in stranding fineness. Class 5 uses fine-stranded copper suitable for panel wiring, machine interconnection, and general industrial flexibility — this is the standard for IS 694:2010 multicore flexible cable.
Class 6 uses even finer stranding for applications requiring higher flex life (drag chains, robotics, repeated-motion cables) and is typically covered under specialised standards rather than IS 694.
For most industrial panel and control wiring, Class 5 provides the optimal balance of flexibility, terminability, and cost.
Are these cables suitable for direct burial in soil?
No. Standard multicore flexible cable to IS 694:2010 is not designed for unprotected direct burial. The PVC sheath resists moisture and chemicals but provides no mechanical armour against soil pressure, stones, or rodent damage.
For direct burial applications, specify steel wire armoured (SWA) cable to IEC 60502-1 or equivalent. If multicore flexible cable must traverse an underground section, route it inside a protective duct or conduit. Consult your project's installation specification for burial depth and mechanical protection requirements.
Request institutional pricing and technical documentation.
Our engineering team responds within 24 hours with accurate bulk pricing, complete compliance documentation, and specifications. BOQ uploads accepted.
Explore related industrial solutions.
View All Products →
Supplying to an international project?
This cable is manufactured to IS 694:2010 on a BIS-certified production line. The same facility produces cable conforming to equivalent international standards — if your project specifies H05VV-F / H07VV-F or NYM-J / NYM-O, we can supply from the same certified manufacturing facility.
