Product Portfolio · National Cables · New Delhi

Cable solutions for infrastructure,
industrial, and institutional applications.

Every product in this portfolio is manufactured in-house from electrolytic copper to final insulation — manufactured to specified parameters and tested before dispatch. No outsourced production. No third-party compounds.

54 Years Manufacturing · Est. 1972
BIS IS 694:2010 Certified
IS 17048:2018 · IS 5831:1984 · IS 8130:2013
CW1308 Telecom
RoHS documentation available on request · Export ready
Filter by application:
Category 01

Infrastructure & Commercial Wiring

Fixed-installation wiring for commercial developments, institutional infrastructure, and high-rise structures. Manufactured to IS 694:2010 in FR and FR-LSH insulation grades for strict compliance with National Building Code fire-safety mandates.

BIS IS 694:2010 · Voltage: 1100V AC · Conductor: Electrolytic Copper · Range: 0.5mm² – 16mm²

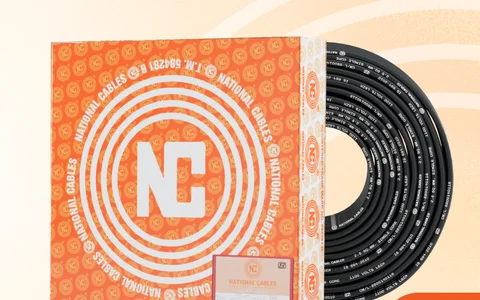

FR-LSH Single Core Wire
Single Core · Fixed Installation
FR-LSH Single Core Wire
Flame-retardant, low-smoke, halogen-limited single core wire for institutional and infrastructure deployments. Self-extinguishing in accordance with IS 694:2010. Specified for hospitals, airports, and public infrastructure where smoke toxicity is critical.
BIS IS 694:2010 1100V AC Self-Extinguishing Low Smoke Emission 0.5mm² – 16mm²
View Specifications Project Pricing
LSZH / HFFR Wire
Single Core · HFFR / LSZH
LSZH / HFFR Single Core Wire
Halogen-free, low-smoke single-core wire — rated 600/1000 V (U₀/U), BIS IS 17048:2018 certified to 1100 V dielectric. For metro, data centres, and high-risk enclosures.
BIS IS 17048:2018 Uo/U 600/1000V (1100V AC compliant) Halogen-Free Low Smoke Emission 0.5mm² – 16mm²
View Specifications Project Pricing
FR Single Core Wire
Single Core · Fixed Installation
FR Single Core Wire
Flame-retardant single core wire for infrastructure wiring. PVC insulation to IS 694:2010 specification. For high-rise residential, commercial, and light industrial fixed installation.
BIS IS 694:2010 1100V AC Flame Retardant PVC Insulated 0.5mm² – 16mm²
View Specifications Project Pricing
Applications: Commercial Towers Hospitals & Healthcare Hotels & Hospitality Airports High-Rise Developments
Category 02

Control & Multi-core Flexible Cables

Flexible single-core and multicore cables for industrial panels, control systems, OEM harnessing, and heavy machinery. Engineered for continuous flexing, high thermal loads, and demanding automated installations.

BIS IS 694:2010 · Voltage: 1100V AC · Conductor: 99.97% Electrolytic Grade Purity (Conductivity ≥ 101% IACS) · Multicore: 2–61 cores (standard stock to 24)
Single Core Flexible Wire
Flexible · Single Core
Single Core Flexible Wire
Fine-stranded electrolytic copper conductor with optimized annealing for maximum ductility. Designed for the internal wiring of industrial panels, switchgears, and OEM equipment requiring repeated flexing and tight routing.
BIS IS 694:2010 1100V AC Fine Stranded 0.5mm² – 240mm²
View Specifications Project Pricing
Multicore Flexible Cable
Flexible · Multicore
Multicore Flexible Cable
In-house PVC-insulated and sheathed multicore flexible cable — 2–61 cores (standard stock to 24). For severe power and control in machinery, panels, and large-scale instrumentation.
BIS IS 694:2010 1100V AC 2 – 61 cores (custom on request) PVC Sheathed
View Specifications Project Pricing
Industrial Control Cable
Control · Multicore
Control Cable
Multicore control cable — 2–61 cores (stock to 24) for command and signal circuits in industrial panels and OEM environments.
BIS IS 694:2010 1100V AC Multi-Core Mechanically Durable
View Specifications Project Pricing
Applications: Control Panels Automotive Assembly Lines OEM Machinery Switchgear Oil & Gas Infrastructure
Category 03

Submersible & Extreme Environment Cables

Heavy-duty flat submersible cables engineered specifically for deep-well pump installations. Resistant to extreme hydrostatic pressure, continuous water immersion, and chemical exposure in agricultural and industrial environments.

BIS IS 694:2010 · Voltage: 1100V AC · Construction: Flat 3-Core · Conductor: Electrolytic Copper
Flat Submersible Pump Cable
Submersible · Flat Construction
Flat Submersible Pump Cable
Three flat-laid conductors with moisture-resistant PVC compounds. Ensures consistent current distribution and high mechanical abrasion resistance for continuous submersion in deep-well environments.
BIS IS 694:2010 1100V AC Flat 3-Core Moisture Resistant Abrasion Resistant Sheath
View Specifications Project Pricing
Applications: Agricultural Deep-Wells Municipal Water Projects Mining Operations Industrial Wastewater
Category 04

Telecommunication & Data Cables

Indoor telecom and signalling cables aligned to CW1308 (British Telecom reference) and to Indian administration / PSU procurement under TEC/ITD G/WIR-06/02 for switchboard and intercom-class wiring. Used by institutional telecom, railway signalling, and building communication projects.

CW1308 · TEC/ITD G/WIR-06/02 · Conductor: Solid Copper · Application: Indoor Voice & Signalling
CW-1308 Telecommunication Cable
Telecom · CW1308
CW1308 Internal Telephone Cable
Solid copper conductor with low-capacitance insulation and precision-twisted pairs. Manufactured to CW1308 specification for government, PBX, and institutional telecommunication infrastructure requiring dependable voice and signalling performance.
CW1308 TEC/ITD G/WIR-06/02 (where specified) Solid Copper Low Capacitance Twisted Pair
View Specifications Project Pricing
Switchboard & Intercom Cable
Telecom · Switchboard
Switchboard & Intercom Cable
Flame-retardant multicore cable for voice, intercom, and control signal distribution in building communication infrastructure. Referenced for Indian PSU / railway procurement under TEC/ITD G/WIR-06/02 and legacy ITD/BSNL-style switchboard and intercom applications.
TEC/ITD G/WIR-06/02 Legacy switchboard/intercom Flame Retardant Multi-Core Low Signal Loss
View Specifications Project Pricing
Applications: Railway Signalling Data Centers Defence Installations PABX & PBX Systems Government Telecommunications
Category 05

Export Standards & Equivalents

Export configurations are engineered to project-defined standards. The same manufacturing line delivers international-equivalent constructions with technical equivalence dossiers for procurement and compliance review.

Standard-specific construction · BIS IS 694:2010 and IS 17048:2018 certified production · CE/RoHS declarations on request
Export standards: H07V-U / H07V-R / H07V-K H05V-U / H05V-K H05VV-F / H07VV-F NYM-J / NYM-O NYY-J / NYY-O BS 6004 / BS 6231 SANS 1507 H07Z-K YY Control Cable
View Export Standards Hub Request Export Technical Support
Custom OEM Manufacturing

Non-standard specifications engineered to procurement requirement.

Because compounding and extrusion are controlled in-house, National Cables engineers OEM configurations to project-defined conductor, insulation, and sheath parameters. Each custom run is released with aligned test documentation.

Discuss OEM Supply →
Non-standard cross-sectionsCustom conductor sizes beyond the standard range for highly specialized infrastructure loads.
Custom core countsUnique multicore configurations engineered specifically for complex panel or control systems.
Specialized insulation formulasLSZH, chemical-resistant, and high-thermal compounds available for demanding environments.
Manufacturing accountabilityTest reports, material certificates, and compliance documentation issued on all custom production.
Institutional Enquiries

Need specifications or pricing for a project?

Our engineering team responds within 24 business hours with technical data, compliance documentation, and institutional pricing for massive deployments.

Request Technical Consultation Download Product Portfolio View Export Capabilities
